AD9804

Complete 10-Bit 18 MSPS CCD Signal Processor

AD9804 Features

* 18 MSPS Correlated Double Sampler (CDS) 6 dB to 40 dB 10-Bit Variable Gain Amplifier (VGA) Low Noise Clamp Circuits Preblanking Function 10-Bit 18 MSPS A/D Converter 3-Wire Serial Digital Interface 3 V Single Supply Operation Low Power CMOS 48-Lead LQFP Package APPLICATIONS PC Cameras Digital Still

AD9804 Datasheet (185.76 KB)

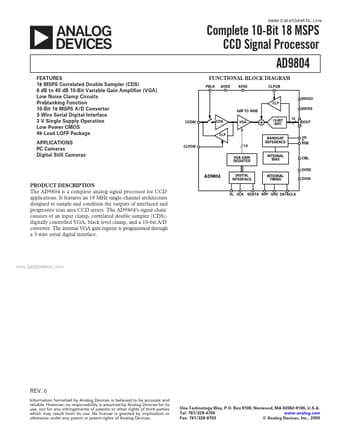

Preview of AD9804 PDF

Datasheet Details

Part number:

AD9804

Manufacturer:

Analog Devices ↗

File Size:

185.76 KB

Description:

Complete 10-bit 18 msps ccd signal processor.
