AD9803 Datasheet, Processor, Analog Devices

AD9803 Features

  • Processor 3-Wire Serial I/F for Digital Control 18 MHz Correlated Double Sampler Low Noise PGA with 0 dB
      –30 dB Range Analog Pre-Blanking Function AUX Input with Input Clamp and PG

PDF File Details

Part number:

AD9803

Manufacturer:

Analog Devices ↗

File Size:

177.64kb

Download:

📄 Datasheet

Description:

Ccd signal processor. The AD9803 is a complete CCD and video signal processor developed for electronic cameras. It is well suited for video camera and stil

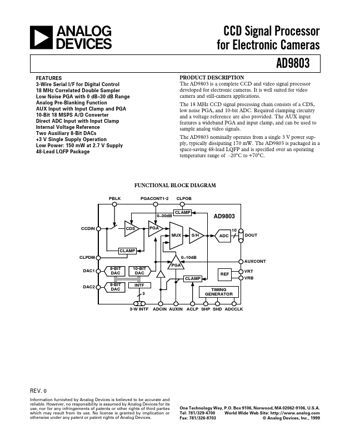

Datasheet Preview: AD9803 📥 Download PDF (177.64kb)
Page 2 of AD9803 Page 3 of AD9803

AD9803 Application

  • Applications The 18 MHz CCD signal processing chain consists of a CDS, low noise PGA, and 10-bit ADC. Required clamping circuitry and a voltage ref
