AD9824 - Complete 14-Bit 30 MSPS CCD Signal Processor

Analog Devices

📥 Download Datasheet

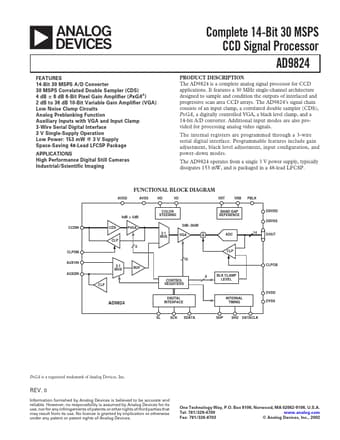

AD9824 Datasheet Preview — Preview of AD9824 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AD9824
Manufacturer: Analog Devices ↗
File Size: 498.63 KB
Datasheet: AD9824-AnalogDevices.pdf
Description: Complete 14-Bit 30 MSPS CCD Signal Processor

AD9824 Product details

Description

The AD9824 is a complete analog signal processor for CCD applications..

Features

14-Bit 30 MSPS A/D Converter 30 MSPS Correlated Double Sampler (CDS) 4 dB ؎ 6 dB 6-Bit Pixel Gain Ampliﬁer (PxGA®) 2 dB to 36 dB 10-Bit Variable Gain Ampliﬁer (VGA) Low Noise Clamp Circuits Analog Preblanking Function Auxiliary Inputs with VGA and Input Clamp 3-Wire Serial Digital Interface 3 V Single-Supply Operation Low Power: 153 mW @ 3 V Supply Space-Saving 48-Lead.
