ADA4938-1 Datasheet - Analog Devices

ADA4938-1 Ultra-Low Distortion Differential ADC Driver

The ADA4938-1/ADA4938-2 are low noise, ultralow distortion, high speed differential amplifiers. It is an ideal choice for driving high performance ADCs with resolutions up to 16 bits from dc to 27 MHz, or up to 12 bits from dc to 74 MHz. The output common-mode voltage is .

ADA4938-1 Features

* Extremely low harmonic distortion (HD)

* 106 dBc HD2 @ 10 MHz

* 82 dBc HD2 @ 50 MHz

* 109 dBc HD3 @ 10 MHz

* 82 dBc HD3 @ 50 MHz Low input voltage noise: 2.6 nV/√Hz High speed

* 3 dB bandwidth of 1000 MHz, G = +1 Slew rate: 4700 V/μs 0.1 dB gain flatness to 150 MHz

ADA4938-1_AnalogDevices.pdf

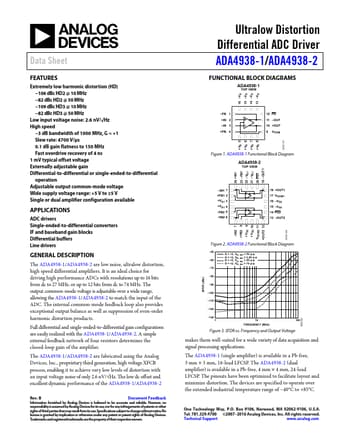

Preview of ADA4938-1 PDF
ADA4938-1 Datasheet Preview Page 2 ADA4938-1 Datasheet Preview Page 3

Datasheet Details

Part number:

ADA4938-1

Manufacturer:

Analog Devices ↗

File Size:

652.10 KB

Description:

Ultra-low distortion differential adc driver.
