ADA4940-1

Low Distortion Fully Differential ADC Driver

ADA4940-1 Features

* Small signal bandwidth: 260 MHz Ultralow power 1.25mA Extremely low harmonic distortion

* 122 dB THD at 50 kHz

* 96 dB THD at 1 MHz Low input voltage noise: 3.9 nV/√Hz 0.35 mV maximum offset voltage Balanced outputs Settling time to 0.1%: 34 ns Rail-to-rail output:

* VS + 0.1 V

ADA4940-1 General Description

The ADA4940-1/ADA4940-2 are low noise, low distortion fully differential amplifiers with very low power consumption. They are an ideal choice for driving low power, high resolution, high performance SAR and sigma-delta (Σ-Δ) analog-to-digital converters (ADCs) with resolutions up to 16 bits from dc .

ADA4940-1 Datasheet (964.52 KB)

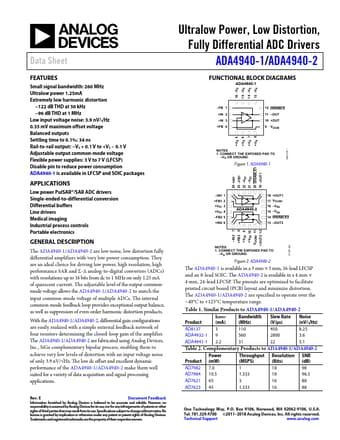

Preview of ADA4940-1 PDF

Datasheet Details

Part number:

ADA4940-1

Manufacturer:

Analog Devices ↗

File Size:

964.52 KB

Description:

Low distortion fully differential adc driver.
