ADA4945-1 Datasheet, Driver, Analog Devices

ADA4945-1 Features

• Driver
• Broad power supply range: 3 V to 10 V
• Wide input common-mode voltage range:
• VS to +VS
• 1.3 V
• Rail-to-rail output
• Fully specifie

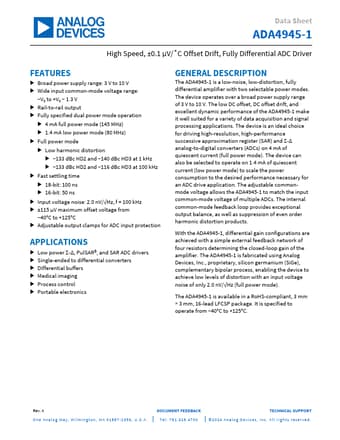

PDF File Details

Part number:

ADA4945-1

Manufacturer:

Analog Devices ↗

File Size:

1.67MB

Download:

📄 Datasheet

Description:

Fully differential adc driver. The ADA4945-1 is a low-noise, low-distortion, fully differential amplifier with two selectable power modes. The device operates over

ADA4945-1 Application

• Applications
• Low power Σ-Δ, PulSAR®, and SAR ADC drivers
• Single-ended to differential converters
• Differential buffers

TAGS

ADA4945-1

Analog Devices
