ADG441 Datasheet, Switches, Analog Devices

ADG441 Features

• Switches 44 V Supply Maximum Ratings VSS to VDD Analog Signal Range Low On Resistance (< 70 Ω) Low ∆RON (9 Ω max) Low RON Match (3 Ω max) Low Power Dissipation Fast Switching Times tON < 110 ns

PDF File Details

Part number:

ADG441

Manufacturer:

Analog Devices ↗

File Size:

279.15kb

Download:

📄 Datasheet

Description:

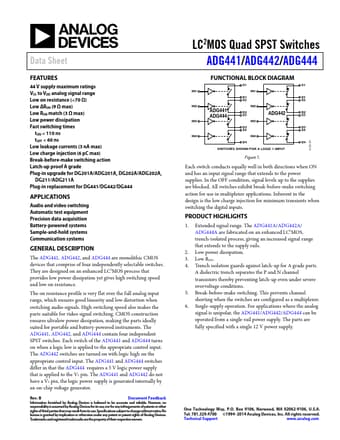

Lc2mos quad spst switches. IN1 LC2MOS Quad SPST Switches ADG441/ADG442/ADG444 FUNCTIONAL BLOCK DIAGRAMS S1 IN1 D1 S2 IN2 IN2 D1 S2 S1 ADG441 ADG444 IN3 D2 S3

ADG441 Application

• Applications Audio and Video Switching Automatic Test Equipment Precision Data Acquisition Battery Powered Systems Sample Hold Systems Communication
