ADG444 Datasheet, switches equivalent, Analog Devices

ADG444 Features

  • Switches 44 V Supply Maximum Ratings VSS to VDD Analog Signal Range Low On Resistance (< 70 Ω) Low ∆RON (9 Ω max) Low RON Match (3 Ω max) Low Power Dissipation Fast Switching Times tON < 110 ns

PDF File Details

Part number:

ADG444

Manufacturer:

Analog Devices ↗

File Size:

279.15kb

Download:

📄 Datasheet

Description:

Lc2mos quad spst switches. IN1 LC2MOS Quad SPST Switches ADG441/ADG442/ADG444 FUNCTIONAL BLOCK DIAGRAMS S1 IN1 D1 S2 IN2 IN2 D1 S2 S1 ADG441 ADG444 IN3 D2 S3

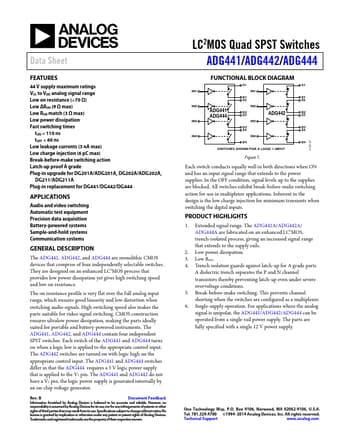

Datasheet Preview: ADG444 📥 Download PDF (279.15kb)
Page 2 of ADG444 Page 3 of ADG444

ADG444 Application

  • Applications Audio and Video Switching Automatic Test Equipment Precision Data Acquisition Battery Powered Systems Sample Hold Systems Communication
