ADG442, ADG Datasheet - Analog Devices

ADG442 LC2MOS Quad SPST Switches

IN1 LC2MOS Quad SPST Switches ADG441/ADG442/ADG444 FUNCTIONAL BLOCK DIAGRAMS S1 IN1 D1 S2 IN2 IN2 D1 S2 S1 ADG441 ADG444 IN3 D2 S3 IN3 D3 S4 ADG442 D2 S3 D3 S4 IN4 IN4 D4 D4 SWITCHES SHOWN FOR A LOGIC "1" INPUT Each switch conducts equally well in both directions when ON and has an input s.

ADG442 Features

* 44 V Supply Maximum Ratings VSS to VDD Analog Signal Range Low On Resistance (< 70 Ω) Low ∆RON (9 Ω max) Low RON Match (3 Ω max) Low Power Dissipation Fast Switching Times tON < 110 ns tOFF < 60 ns Low Leakage Currents ( 3 nA max) Low Charge Injection (6 pC max) Break-Before-Make Switching Action La

ADG-441.pdf

This datasheet PDF includes multiple part numbers: ADG442, ADG. Please refer to the document for exact specifications by model.

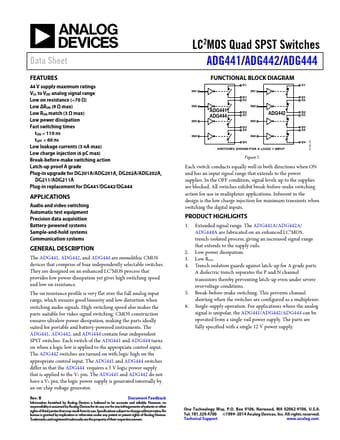

ADG442 Datasheet Preview Page 2 ADG442 Datasheet Preview Page 3

Datasheet Details

Part number:

ADG442, ADG

Manufacturer:

Analog Devices ↗

File Size:

279.15 KB

Description:

Lc2mos quad spst switches.

Note:

This datasheet PDF includes multiple part numbers: ADG442, ADG.
Please refer to the document for exact specifications by model.
