ADG5412BF Datasheet, Switches, Analog Devices

ADG5412BF Features

  • Switches Overvoltage protection up to
  • 55 V and +55 V Power-off protection up to
  • 55 V and +55 V Overvoltage detection on source and drain pins Low on resistance: 10 Ω On-resista

PDF File Details

Part number:

ADG5412BF

Manufacturer:

Analog Devices ↗

File Size:

710.71kb

Download:

📄 Datasheet

Description:

Quad spst switches. The ADG5412BF and ADG5413BF contain four independently controlled single-pole/single-throw (SPST) switches. The ADG5412BF has four sw

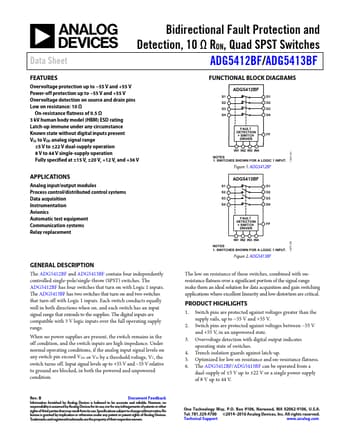

Datasheet Preview: ADG5412BF 📥 Download PDF (710.71kb)
Page 2 of ADG5412BF Page 3 of ADG5412BF

ADG5412BF Application

  • Applications Analog input/output modules Process control/distributed control systems Data acquisition Instrumentation Avionics Automatic test equipm
