ADG5413F Datasheet, Switches, Analog Devices

ADG5413F Features

  • Switches Overvoltage protection up to
  • 55 V and +55 V Power-off protection up to
  • 55 V and +55 V Overvoltage detection on source pins Low on resistance: 10 Ω On-resistance flatne

PDF File Details

Part number:

ADG5413F

Manufacturer:

Analog Devices ↗

File Size:

503.98kb

Download:

📄 Datasheet

Description:

Quad spst switches. The ADG5412F and ADG5413F contain four independently controlled single-pole/single-throw (SPST) switches. The ADG5412F has four switc

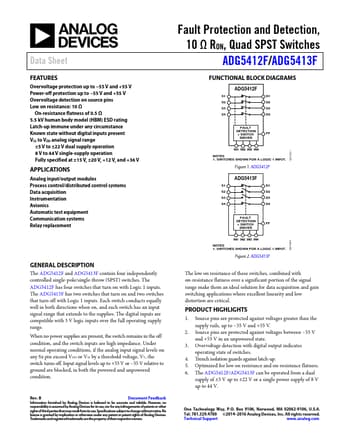

Datasheet Preview: ADG5413F 📥 Download PDF (503.98kb)
Page 2 of ADG5413F Page 3 of ADG5413F

ADG5413F Application

  • Applications Analog input/output modules Process control/distributed control systems Data acquisition Instrumentation Avionics Automatic test equipm
