ADG5413BF, ADG5412BF - Quad SPST Switches

Analog Devices

Datasheet Details

Part number	ADG5413BF, ADG5412BF
Manufacturer	Analog Devices
File Size	710.71 KB
Description	Quad SPST Switches

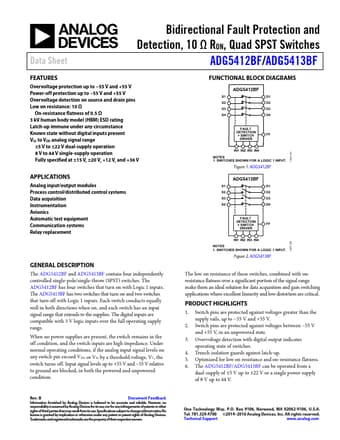

Datasheet	ADG5412BF-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: ADG5413BF, ADG5412BF. Please refer to the document for exact specifications by model.

The ADG5412BF and ADG5413BF contain four independently controlled single-pole/single-throw (SPST) switches.

Overvoltage protection up to.
55 V and +55 V Power-off protection up to.
55 V and +55 V Overvoltage detection on source and drain pins Low on resistance: 10 Ω On-resistance flatness of 0.5 Ω 3 kV human body model (HBM) ESD rating Latch-up immune under any circumstance Known state without digital inputs present VSS to VDD analog signal range ±5 V to ±22 V dual-supply operation 8 V to 44 V single-supply operation Fully specified at ±15 V, ±20 V, +12 V, and +36 V.
