ADG5419 Datasheet, Switch, Analog Devices

ADG5419 Features

  • Switch Latch-up immune under all circumstances Human body model (HBM) ESD rating: 8 kV Low on resistance: 13.5 Ω ±9 V to ±22 V dual-supply operation 9 V to 40 V single-supply operation 48 V su

PDF File Details

Part number:

ADG5419

Manufacturer:

Analog Devices ↗

File Size:

325.29kb

Download:

📄 Datasheet

Description:

Single spdt switch. The ADG5419 is a monolithic industrial, complementary metal oxide semiconductor (CMOS) analog switch containing a latchup immune sing

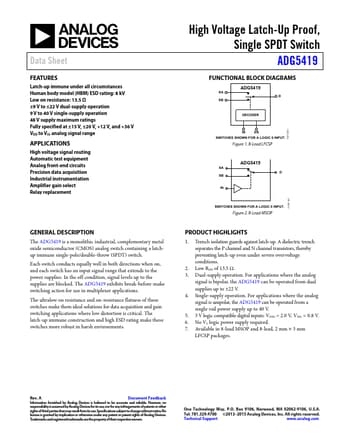

Datasheet Preview: ADG5419 📥 Download PDF (325.29kb)
Page 2 of ADG5419 Page 3 of ADG5419

ADG5419 Application

  • Applications High voltage signal routing Automatic test equipment Analog front-end circuits Precision data acquisition Industrial instrumentation Am
