ADG5413 Datasheet, Switches, Analog Devices

ADG5413 Features

• Switches Latch-up proof 8 kV human body model (HBM) ESD rating Low on resistance (<10 Ω) ±9 V to ±22 V dual-supply operation 9 V to 40 V single-supply operation 48 V supply maximum ratings Fully

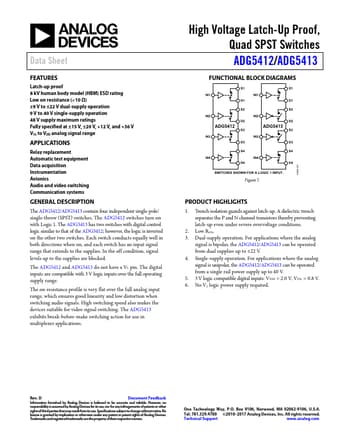

PDF File Details

Part number:

ADG5413

Manufacturer:

Analog Devices ↗

File Size:

457.80kb

Download:

📄 Datasheet

Description:

Quad spst switches. The ADG5412/ADG5413 contain four independent single-pole/ single-throw (SPST) switches. The ADG5412 switches turn on with Logic 1. Th

ADG5413 Application

• Applications Relay replacement Automatic test equipment Data acquisition Instrumentation Avionics Audio and video switching Communication systems GE
