ADG790 Datasheet, Switch, Analog Devices

ADG790 Features

  • Switch Single-chip audio/video/data switching solution Wide bandwidth section Rail-to-rail signal switching capability Compliant with full speed USB 2.0 signaling (3.6 V p-p) Compliant with hi

PDF File Details

Part number:

ADG790

Manufacturer:

Analog Devices ↗

File Size:

361.73kb

Download:

📄 Datasheet

Description:

Cmos multimedia switch. The ADG790 is a single-chip, CMOS switching solution that comprises four SPDT switches and two 4:1 multiplexers. The internal archite

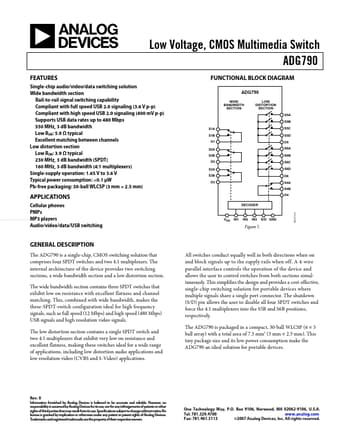

Datasheet Preview: ADG790 📥 Download PDF (361.73kb)
Page 2 of ADG790 Page 3 of ADG790

ADG790 Application

  • Applications Cellular phones PMPs www.DataSheet4U.com MP3 players Audio/video/data/USB switching VDD IN1 IN2 IN3 S/D GND Figure 1. GENERAL DE
