ADG792G, ADG792A Datasheet - Analog Devices

ADG792G (ADG792A / ADG792G) Triple 4:1 Multiplexer

The ADG792A/ADG792G are monolithic CMOS devices, each comprising three 4:1 multiplexer/demultiplexers that are controllable through a standard I2C serial interface. The CMOS process provides ultralow power dissipation yet delivers high switching speed and low on resistance. The on resistance profile.

ADG792G Features

* Bandwidth: 190 MHz Low insertion loss and on resistance: 2.6 Ω typical On resistance flatness: 0.3 Ω typical Single 3 V/5 V supply operation 3.3 V analog signal range (5 V supply, 75 Ω load) Low quiescent supply current: 1 nA typical Fast switching times: tON 185 ns, tOFF 181 ns I2C®-compatible inte

ADG792A_AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: ADG792G, ADG792A. Please refer to the document for exact specifications by model.

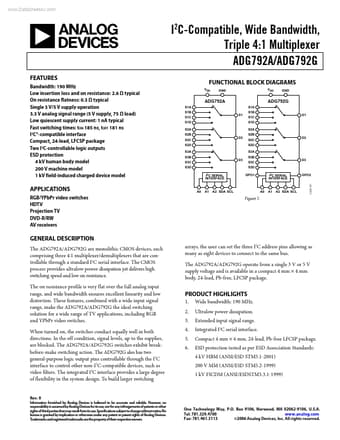

ADG792G Datasheet Preview Page 2 ADG792G Datasheet Preview Page 3

Datasheet Details

Part number:

ADG792G, ADG792A

Manufacturer:

Analog Devices ↗

File Size:

431.00 KB

Description:

(adg792a / adg792g) triple 4:1 multiplexer.

Note:

This datasheet PDF includes multiple part numbers: ADG792G, ADG792A.
Please refer to the document for exact specifications by model.
