ADG793G, Triple 3:1 Multiplexer

I2C-Compatible, Wide Bandwidth, Triple 3:1 Multiplexer ADG793A/ADG793G .
The ADG793A/ADG793G are monolithic CMOS devices compr.

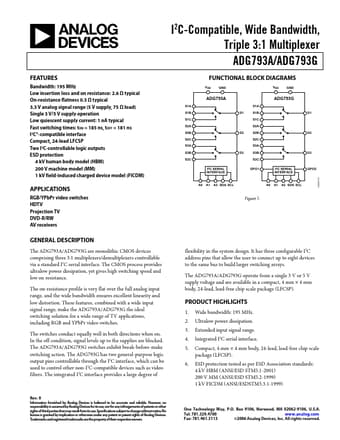

datasheet Preview Page 1 from Datasheet4u.com

ADG793G_AnalogDevices.pdf

ADG793G Datasheet Preview — Preview of ADG793G PDF

Datasheet Details

Part number:

ADG793G

Manufacturer:

Analog Devices ↗

File Size:

349.29 KB

Description:

Triple 3:1 Multiplexer

Features

* Bandwidth: 195 MHz Low insertion loss and on resistance: 2.6 Ω typical On-resistance flatness 0.3 Ω typical 3.3 V analog signal range (5 V supply, 75 Ω load) Single 3 V/5 V supply operation Low quiescent supply current: 1 nA typical Fast switching times: tON = 185 ns, tOFF = 181 ns I2C®-compatible i

Applications

* RGB/YPbPr video switches HDTV Projection TV DVD-R/RW AV receivers FUNCTIONAL BLOCK DIAGRAMS VDD GND VDD GND ADG793A ADG793G S1A S1A S1B S1C S2A D1 S1B S1C S2A D1 S2B S2C S3A D2 S2B S2C S3A D2 S3B S3C D3 S3B S3C D3 I2C SERIAL INTERFACE GPO1 I2C SERIAL INTERFACE GPO2 A0 A1 A2 SDA
