ADG791G

(ADG791A / ADG791G) 2:1 Multiplexer

Analog Devices

ADG791G Features

* Bandwidth: 325 MHz Low insertion loss and on resistance: 2.6 Ω typical On resistance flatness: 0.3 Ω typical Single 3 V/5 V supply operation 3.3 V analog signal range (5 V supply, 75 Ω load) Low quiescent supply current: 1 nA typical Fast switching times: tON = 186 ns, tOFF = 177 ns I2C®-compatible

ADG791G General Description

The ADG791A/ADG791G are monolithic CMOS devices comprising four 2:1 multiplexers/demultiplexers controllable via a standard I2C serial interface. The CMOS process provides ultralow power dissipation yet gives high switching speed and low on resistance. The on-resistance profile is very flat over the.

ADG791G Datasheet (433.68 KB)

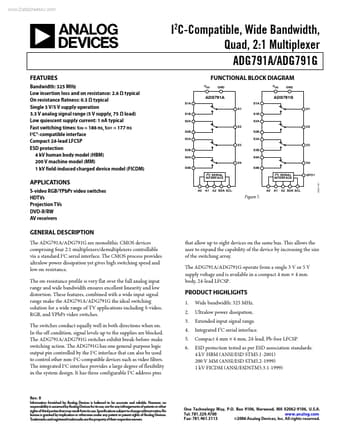

ADG791G Datasheet Preview — Preview of ADG791G PDF

Datasheet Details

Part number:

ADG791G

Manufacturer:

Analog Devices ↗

File Size:

433.68 KB

Description:

(adg791a / adg791g) 2:1 multiplexer.
