ADG793A, ADG793G Triple 3:1 Multiplexer

Analog Devices

Description

I2C-Compatible, Wide Bandwidth, Triple 3:1 Multiplexer ADG793A/ADG793G .
The ADG793A/ADG793G are monolithic CMOS devices compr.

📥 Download Datasheet

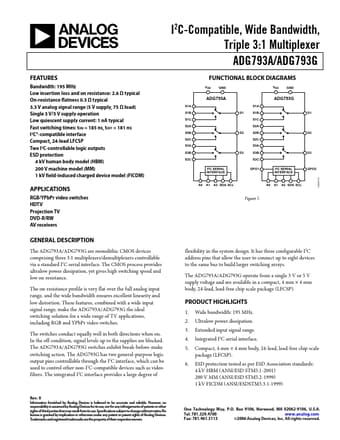

ADG793A Datasheet Preview — This datasheet PDF includes multiple part numbers: ADG793A, ADG793G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ADG793A, ADG793G
Manufacturer: Analog Devices ↗
File Size: 349.29 KB
Datasheet: ADG793G_AnalogDevices.pdf
Description: Triple 3:1 Multiplexer
Note: This datasheet PDF includes multiple part numbers: ADG793A, ADG793G.
Please refer to the document for exact specifications by model.

Features

* Bandwidth: 195 MHz Low insertion loss and on resistance: 2.6 Ω typical On-resistance flatness 0.3 Ω typical 3.3 V analog signal range (5 V supply, 75 Ω load) Single 3 V/5 V supply operation Low quiescent supply current: 1 nA typical Fast switching times: tON = 185 ns, tOFF = 181 ns I2C®-compatible i

Applications

* RGB/YPbPr video switches HDTV Projection TV DVD-R/RW AV receivers FUNCTIONAL BLOCK DIAGRAMS VDD GND VDD GND ADG793A ADG793G S1A S1A S1B S1C S2A D1 S1B S1C S2A D1 S2B S2C S3A D2 S2B S2C S3A D2 S3B S3C D3 S3B S3C D3 I2C SERIAL INTERFACE GPO1 I2C SERIAL INTERFACE GPO2 A0 A1 A2 SDA
