DAC312 Datasheet, Converter, Analog Devices

DAC312 Features

• Converter Differential Nonlinearity: ؎1/2 LSB Nonlinearity: 0.05% Fast Settling Time: 250 ns High Compliance:
    –5 V to +10 V Differential Outputs: 0 to 4 mA Guaranteed Monotonicity

PDF File Details

Part number:

DAC312

Manufacturer:

Analog Devices ↗

File Size:

269.38kb

Download:

📄 Datasheet

Description:

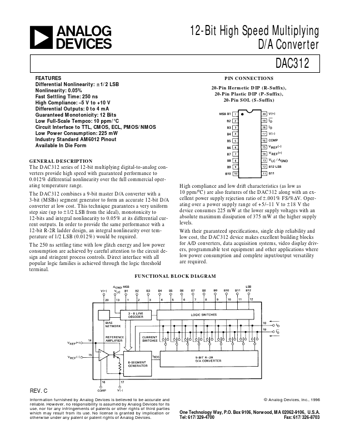

12-bit high speed multiplying d/a converter. 12-Bit High Speed Multiplying D/A Converter DAC312 PIN CONNECTIONS 20-Pin Hermetic DIP (R-Suffix), 20-Pin Plastic DIP (P-Suffix), 20

DAC312 Application

• Applications where low power consumption and complete input/output versatility are required. FUNCTIONAL BLOCK DIAGRAM REV. C Information furnished
