DAC3162

500-MSPS Digital-to-Analog Converters

DAC3162 Features

* 1

* Low Power: 270 mW at 500 MSPS

* LVDS Input Data Bus

* Interleaved DDR Data Load

* High DC Accuracy: ±0.25 LSB DNL (10-bit), ± 0.5 LSB INL (12-bit)

* Low Latency: 1.5 Clock Cycles

* Simple Control: No Software Required

* Differential Scalabl

DAC3162 General Description

The DAC3152/DAC3162 is a low-power, low-latency, high-dynamic-range, dual-channel, 10-/12-bit, pincompatible family of digital-to-analog converters (DACs) with a sample rate as high as 500 MSPS. The device simplicity (no software required), low latency, and low power simplify the design of complex s.

DAC3162 Datasheet (2.05 MB)

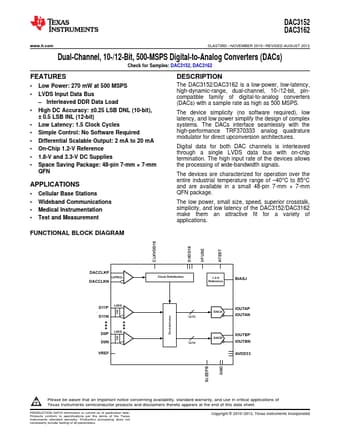

Preview of DAC3162 PDF

Datasheet Details

Part number:

DAC3162

Manufacturer:

Texas Instruments ↗

File Size:

2.05 MB

Description:

500-msps digital-to-analog converters.
DAC3152 DAC3162 www.ti.com SLAS736D

* NOVEMBER 2010

* REVISED AUGUST 2012 Dual-Channel, 10-/12-Bit, 500-MSPS Digital-to-Analog Conv.
