DAC3154, DAC3164 - Dual 12-/10-Bit 500 MSPS Digital-to-Analog Converters

Texas Instruments

📥 Download Datasheet

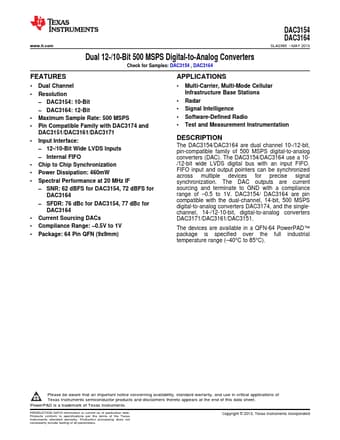

DAC3154 Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC3154, DAC3164. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DAC3154, DAC3164
Manufacturer: Texas Instruments ↗
File Size: 1.73 MB
Datasheet: DAC3164-etcTI.pdf
Description: Dual 12-/10-Bit 500 MSPS Digital-to-Analog Converters
Note: This datasheet PDF includes multiple part numbers: DAC3154, DAC3164.
Please refer to the document for exact specifications by model.

DAC3154 Product details

Description

The DAC3154/DAC3164 are dual channel 10-/12-bit, pin-compatible family of 500 MSPS digital-to-analog converters (DAC). 0.5 to 1V.

Features

1.
2 Dual Channel.
Resolution.
DAC3154: 10-Bit.
DAC3164: 12-Bit.
Maximum Sample Rate: 500 MSPS.
Pin Compatible Family with DAC3174 and DAC3151/DAC3161/DAC3171.
Input Interface:.
12-/10-Bit Wide LVDS Inputs.
Internal FIFO.
Chip to Chip Synchronization.
Power Dissipation: 460mW.
Spectral Performance at 20 MHz IF.
SNR: 62 dBFS for DAC3154, 72 dBFS for DAC3164.
SFDR: 76 dBc fo.
