DAC3152, DAC3162 Datasheet - Texas Instruments

DAC3152 500-MSPS Digital-to-Analog Converters

The DAC3152/DAC3162 is a low-power, low-latency, high-dynamic-range, dual-channel, 10-/12-bit, pincompatible family of digital-to-analog converters (DACs) with a sample rate as high as 500 MSPS. The device simplicity (no software required), low latency, and low power simplify the design of complex s.

DAC3152 Features

* 1

* Low Power: 270 mW at 500 MSPS

* LVDS Input Data Bus

* Interleaved DDR Data Load

* High DC Accuracy: ±0.25 LSB DNL (10-bit), ± 0.5 LSB INL (12-bit)

* Low Latency: 1.5 Clock Cycles

* Simple Control: No Software Required

* Differential Scalabl

DAC3162-etcTI.pdf

This datasheet PDF includes multiple part numbers: DAC3152, DAC3162. Please refer to the document for exact specifications by model.

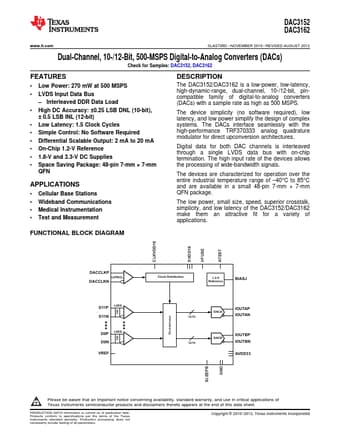

DAC3152 Datasheet Preview Page 2 DAC3152 Datasheet Preview Page 3
