DAC3161, DAC3151 Datasheet - Texas Instruments

DAC3161 Digital-to-Analog Converters

The DAC3151, DAC3161, and DAC3171 (DAC31x1) are a family of single-channel, 500-MSPS digital-toanalog converters (DACs). This family uses a 10-, 12-, or 14-bit wide LVDS digital bus with an input FIFO. The 14-bit DAC3171 also supports a DDR 7-bit LVDS interface mode. FIFO input and output pointers c.

DAC3161 Features

* 1 Single Channel

* Resolution

* DAC3151: 10-Bit

* DAC3161: 12-Bit

* DAC3171: 14-Bit

* Maximum Sample Rate: 500 MSPS

* Pin-Compatible Family

* Input Interface:

* Parallel LVDS Inputs

* Single or Dual DDR Data Clock

DAC3151-etcTI.pdf

This datasheet PDF includes multiple part numbers: DAC3161, DAC3151. Please refer to the document for exact specifications by model.

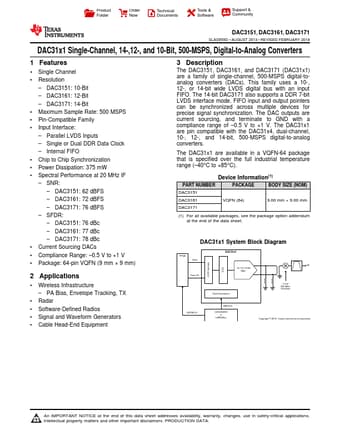

DAC3161 Datasheet Preview Page 2 DAC3161 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC3161, DAC3151

Manufacturer:

Texas Instruments ↗

File Size:

2.32 MB

Description:

Digital-to-analog converters.

Note:

This datasheet PDF includes multiple part numbers: DAC3161, DAC3151.
Please refer to the document for exact specifications by model.
