HMC-C016 Datasheet - Analog Devices

HMC-C016 WIDEBAND LNA MODULE

The HMC-C016 is a GaAs MMIC PHEMT Low Noise Amplifier in a miniature, hermetic module which operates between 7 and 17 GHz. This high dynamic range amplifier provides 22 dB of gain, 2 dB noise figure and up to +14 dBm of output power at 1 dB gain compression while operating from a single positive sup.

HMC-C016 Datasheet (303.74 KB)

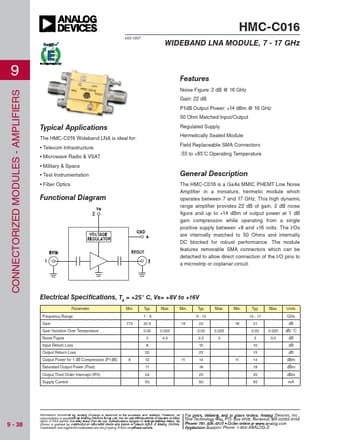

Preview of HMC-C016 PDF
HMC-C016 Datasheet Preview Page 2 HMC-C016 Datasheet Preview Page 3

Datasheet Details

Part number:

HMC-C016

Manufacturer:

Analog Devices ↗

File Size:

303.74 KB

Description:

Wideband lna module.
