HMC1096LP3E

GaAs pHEMT MMIC X2 ACTIVE FREQUENCY MULTIPLIER

HMC1096LP3E Features

* High Output Power: 12 dBm Low Input Power Drive: -2 to +5 dBm Fo, 3 Fo Isolation: +22 dBc Single Supply: +5V @100 mA 16 Lead 3 x 3 mm SMT Package Functional Diagram General Description The HMC1096LP3E is a x2 active broadband frequency multiplier utilizing GaAs pHEMT technology in a leadless RoHS

HMC1096LP3E General Description

The HMC1096LP3E is a x2 active broadband frequency multiplier utilizing GaAs pHEMT technology in a leadless RoHS compliant Low Stress Injection Molded Plastic SMT package. When driven by a 0 dBm signal, the multiplier provides +12 dBm typical output power from 3.8 to 5.6 GHz. The Fo and 3 Fo isolati.

HMC1096LP3E Datasheet (373.55 KB)

Preview of HMC1096LP3E PDF

Datasheet Details

Part number:

HMC1096LP3E

Manufacturer:

Analog Devices ↗

File Size:

373.55 KB

Description:

Gaas phemt mmic x2 active frequency multiplier.
FREQUENCY MULTIPLIER - ACTIVE - SMT Typical Applications The HMC1096LP3E is suitable for:

* Point-to-Point & VSAT Radios

* Test Instr.

📁 Related Datasheet

HMC1093 - GaAs MMIC SUB HARMONIC MIXER (Analog Devices)
MIXERS - SUB HARMONIC - CHIP v00.0613 Typical Applications The HMC1093 is ideal for: • 38 GHz Microwave Radio • 42 GHz Microwave Radio • Military End.

HMC1094 - Logarithmic Detector (Analog Devices)
Data Sheet FEATURES Wide input bandwidth: 1 to 23 GHz Wide dynamic range: 50 dB up to 23 GHz Single positive supply: 3.3 V Excellent stability over te.

HMC1094LP3E - LOGARITHMIC DETECTOR (Hittite)
POWER DETECTORS - SMT v00.0813 Typical Applications The HMC1094LP3E is ideal for: • Point-to-Point Microwave Radio • VSAT • Wideband Power Monitor.

HMC1095LP4E - 0.5dB LSB GaAs MMIC (Analog Devices)
Attenuators - SMT HMC1095LP4E v01.0713 0.5 dB LSB GaAs MMIC 6-BIT 75 Ohms DIGITAL ATTENUATOR, DC - 3 GHz Typical Applications The HMC1095LP4E is .

HMC1097LP4E - WIDEBAND DIRECT QUADRATURE (Analog Devices)
v03.0812 11 Typical Applications The HMC1097LP4E is Ideal for: • UMTS, GSM or CDMA Basestations • Fixed Wireless or WLL • ISM Transceivers, 900 & 24.

HMC1099 - Power Amplifier (Analog Devices)
Data Sheet FEATURES High saturated output power (PSAT): 40.5 dBm typical High small signal gain: 18.5 dB typical High power added efficiency (PAE): 69.

HMC1099PM5E - GaN Power Amplifier (Analog Devices)
Data Sheet 10 W (40 dBm), 0.01 GHz to 1.1 GHz, GaN Power Amplifier HMC1099PM5E FEATURES High small signal gain: 20 dB typical POUT: 41.5 dBm typical.

HMC1001 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
1- and 2-Axis Magnetic Sensors HMC1001/1002/1021/1022 HMC1001/1002/1021/1022 Technical Specifications The Honeywell HMC100x and HMC102x magnetic sen.

TAGS

HMC1096LP3E GaAs pHEMT MMIC ACTIVE FREQUENCY MULTIPLIER Analog Devices

Image Gallery

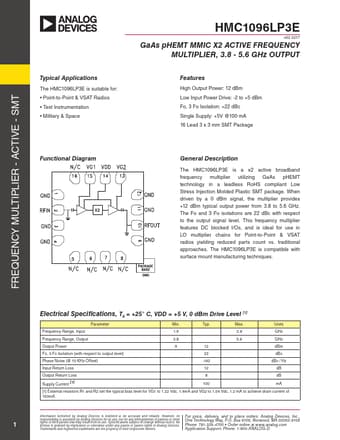

HMC1096LP3E Datasheet Preview Page 2 HMC1096LP3E Datasheet Preview Page 3
