HMC1099 Datasheet, Amplifier, Analog Devices

HMC1099 Features

• Amplifier High saturated output power (PSAT): 40.5 dBm typical High small signal gain: 18.5 dB typical High power added efficiency (PAE): 69% typical Instantaneous bandwidth: 0.01 GHz to 1.1 GHz

PDF File Details

Part number:

HMC1099

Manufacturer:

Analog Devices ↗

File Size:

401.97kb

Download:

📄 Datasheet

Description:

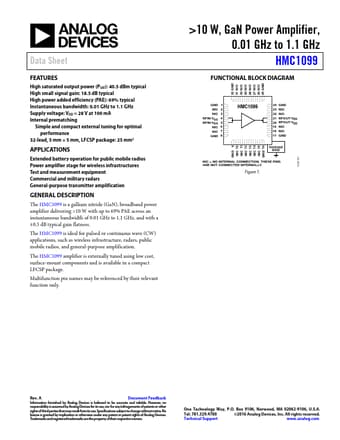

Power amplifier. The HMC1099 is a gallium nitride (GaN), broadband power amplifier delivering >10 W with up to 69% PAE across an instantaneous bandwid

HMC1099 Application

• Applications Extended battery operation for public mobile radios Power amplifier stage for wireless infrastructures Test and measurement equipment C
