HMC1099PM5E Datasheet, Amplifier, Analog Devices

HMC1099PM5E Features

  • Amplifier High small signal gain: 20 dB typical POUT: 41.5 dBm typical at PIN = 27 dBm High PAE: 60% typical at PIN = 27 dBm Instantaneous bandwidth: 0.01 GHz to 1.1 GHz across all frequencies Su

PDF File Details

Part number:

HMC1099PM5E

Manufacturer:

Analog Devices ↗

File Size:

318.71kb

Download:

📄 Datasheet

Description:

Gan power amplifier. The HMC1099PM5E is a gallium nitride (GaN), broadband power amplifier that delivers 10 W (40 dBm) with up to 60% power added efficien

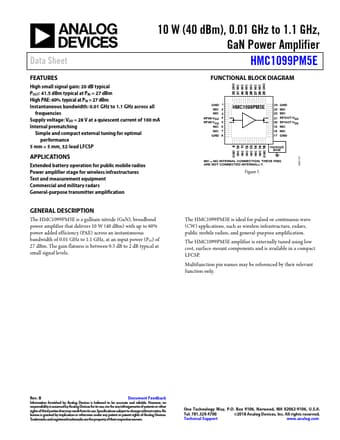

Datasheet Preview: HMC1099PM5E 📥 Download PDF (318.71kb)
Page 2 of HMC1099PM5E Page 3 of HMC1099PM5E

HMC1099PM5E Application

  • Applications Extended battery operation for public mobile radios Power amplifier stage for wireless infrastructures Test and measurement equipment C
