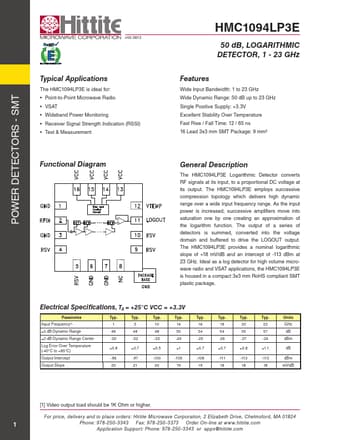

HMC1094LP3E Datasheet, DETECTOR, Hittite

HMC1094LP3E Features

• Detector Wide Input Bandwidth: 1 to 23 GHz Wide Dynamic Range: 50 dB up to 23 GHz Single Positive Supply: +3.3V Excellent Stability Over Temperature Fast Rise / Fall Time: 12 / 65 ns 16 Lead 3x3

PDF File Details

Part number:

HMC1094LP3E

Manufacturer:

Hittite

File Size:

699.18kb

Download:

📄 Datasheet

Description:

Logarithmic detector. The HMC1094LP3E Logarithmic Detector converts RF signals at its input, to a proportional DC voltage at its output. The HMC1094LP3E em

HMC1094LP3E Application

• Applications The HMC1094LP3E is ideal for:
• Point-to-Point Microwave Radio
• VSAT
• Wideband Power Monitoring
