HMC110 Datasheet, Attenuator, Hittite

HMC110 Features

  • Attenuator BANDWIDTH: DC-10 GHZ LOW INSERTION LOSS : <6 dB 2 ATTENUATORS DIE 31 dB ATTENUATION RANGE FAST SWITCHING: 6 nS Guaranteed Performance With 0/-5V Control, -55 to +85 deg C Parameter R

PDF File Details

Part number:

HMC110

Manufacturer:

Hittite

File Size:

101.43kb

Download:

📄 Datasheet

Description:

Gaas mmic 5 - bit digital attenuator. The HMC110 chip is a 5-bit digital attenuator with a 31 dB range in 1 dB steps. Each bit is activated by applying 0V to port A and di

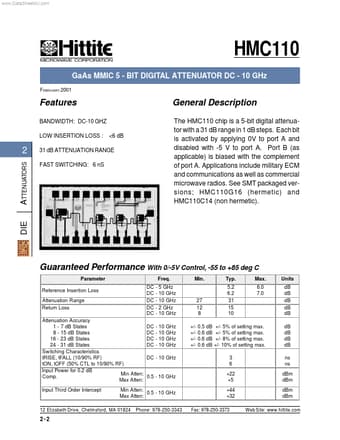

Datasheet Preview: HMC110 📥 Download PDF (101.43kb)
Page 2 of HMC110 Page 3 of HMC110

HMC110 Application

  • Applications include military ECM and communications as well as commercial microwave radios. See SMT packaged versions; HMC110G16 (hermetic) and HMC
