HMC110G16

1 dB LSB GaAs MMIC SMT 5-BIT DIGITAL ATTENUATOR

Hittite Microwave

HMC110G16 Features

* Bandwidth: DC - 2 GHz Low Insertion Loss: 5 dB 31dB Attenuation Range Fast Switching: 6 nS 1 dB LSB GaAs MMIC SMT 5-BIT DIGITAL ATTENUATOR, DC - 2.0 GHz Typical Applications

* Base station Infrustructure

* Portable Wireless 2 ATTENUATORS - SMT

* CATV & DBS

* Milita

HMC110G16 General Description

The HMC110G16 is a 5-bit surface mount hermetically sealed digital attenuator. Each bit is activated by applying a 0V control, and then disabled by applying -5V control to the speciﬁed control pin. The ﬁve primary attenuation states can be activated independently, or collectively for a maximum combi.

HMC110G16 Datasheet (118.23 KB)

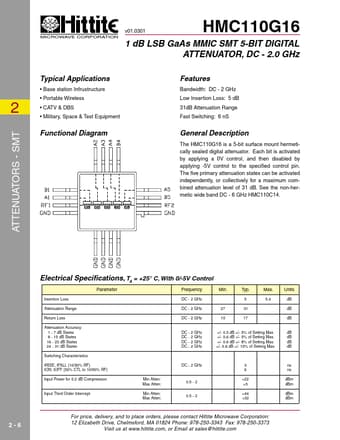

HMC110G16 Datasheet Preview — Preview of HMC110G16 PDF

Datasheet Details

Part number:

HMC110G16

Manufacturer:

Hittite Microwave

File Size:

118.23 KB

Description:

1 db lsb gaas mmic smt 5-bit digital attenuator.
