HMC1114 Datasheet, Amplifier, Analog Devices

HMC1114 Features

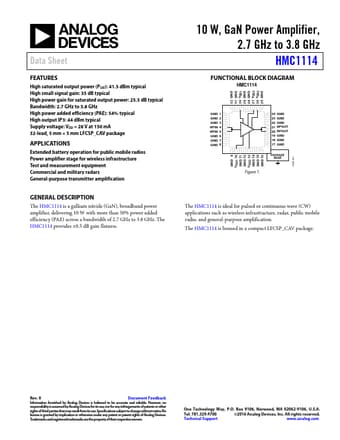

• Amplifier High saturated output power (PSAT): 41.5 dBm typical High small signal gain: 35 dB typical High power gain for saturated output power: 25.5 dB typical Bandwidth: 2.7 GHz to 3.8 GHz High

PDF File Details

Part number:

HMC1114

Manufacturer:

Analog Devices ↗

File Size:

399.65kb

Download:

📄 Datasheet

Description:

Power amplifier. The HMC1114 is a gallium nitride (GaN), broadband power amplifier, delivering 10 W with more than 50% power added efficiency (PAE) ac

HMC1114 Application

• Applications Extended battery operation for public mobile radios Power amplifier stage for wireless infrastructure Test and measurement equipment Co
