HMC1119 Datasheet, Attenuator, Analog Devices

HMC1119 Features

  • Attenuator Attenuation range: 0.25 dB LSB steps to 31.75 dB Low insertion loss: 1.1 dB at 1.0 GHz 1.3 dB at 2.0 GHz Typical step error: less than ±0.1 dB Excellent attenuation accuracy: less than

PDF File Details

Part number:

HMC1119

Manufacturer:

Analog Devices ↗

File Size:

892.13kb

Download:

📄 Datasheet

Description:

Silicon digital attenuator. The HMC1119 is a broadband, highly accurate, 7-bit digital attenuator, operating from 0.1 GHz to 6.0 GHz with 31.5 dB attenuation con

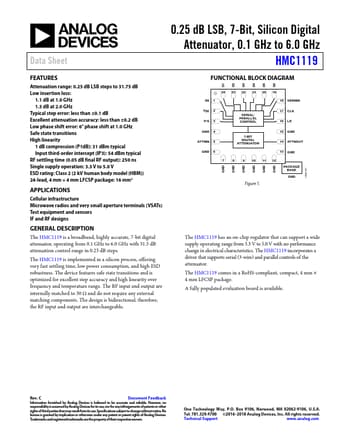

Datasheet Preview: HMC1119 📥 Download PDF (892.13kb)
Page 2 of HMC1119 Page 3 of HMC1119

HMC1119 Application

  • Applications Cellular infrastructure Microwave radios and very small aperture terminals (VSATs) Test equipment and sensors IF and RF designs GENERAL
