HMC1113LP5E Datasheet, Downconverte, Analog Devices

HMC1113LP5E Features

  • Downconverte Conversion Gain: 12 dB Image Rejection: 25 dBc LO to RF Isolation: 45 dB Noise Figure: 1.8 dB Input IP3: 1 dBm 32 Lead 5 x 5 mm SMT Package Functional Diagram General Description The

PDF File Details

Part number:

HMC1113LP5E

Manufacturer:

Analog Devices ↗

File Size:

591.80kb

Download:

📄 Datasheet

Description:

Gaas mmic i/q mixer downconverte. The HMC1113LP5E is a compact GaAs MMIC I/Q downconverter in a leadless 5 x 5 mm low stress injection molded plastic surface mount

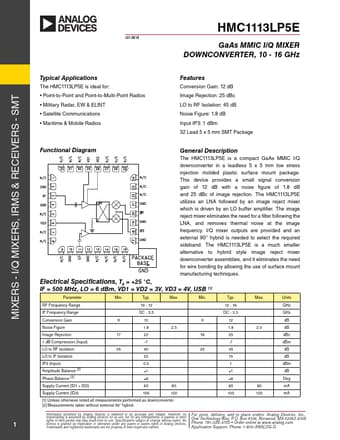

Datasheet Preview: HMC1113LP5E 📥 Download PDF (591.80kb)
Page 2 of HMC1113LP5E Page 3 of HMC1113LP5E

HMC1113LP5E Application

  • Applications The HMC1113LP5E is ideal for:
  • Point-to-Point and Point-to-Multi-Point Radios
  • Military Radar, EW & ELINT
  • S
