HMC1106 Datasheet - Analog Devices

GaAs MMIC MIXER

HMC1106 General Description

The HMC1106 is a double-balanced mixer which can be used as a downconverter with DC to 24 GHz at the IF port, 20 to 50 GHz at the LO port, and 15 to 36 GHz at the RF port. This passive MMIC mixer is fabricated with GaAs Shottky diode technology. All bond pads and the die backside are Ti/Au metallize.

HMC1106 Datasheet (770.39 KB)

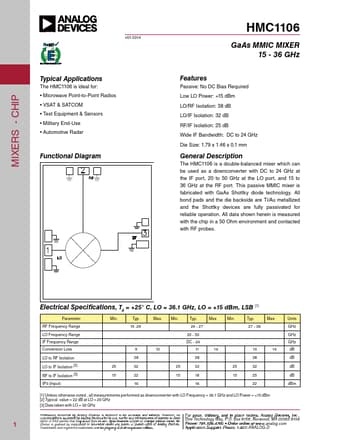

Preview of HMC1106 PDF

Datasheet Details

Part number:

HMC1106

Manufacturer:

Analog Devices ↗

File Size:

770.39 KB

Description:

Gaas mmic mixer.
MIXERS - CHIP v01.0314 Typical Applications The HMC1106 is ideal for: Microwave Point-to-Point Radios VSAT & SATCOM Tes.
