HMC1110

GaAs MMIC X6 ACTIVE FREQUENCY MULTIPLIER

Analog Devices

HMC1110 General Description

The HMC1110 is a x6 active broadband frequency multiplier chip utilizing GaAs pHEMT technology. When driven by a +4 dBm signal, the multiplier provides +13 dBm typical output power from 71 to 86 GHz. The 5Fo and 7Fo harmonic isolations with respect to the output signal level are +25 dBc and +40 dBc .

HMC1110 Datasheet (411.72 KB)

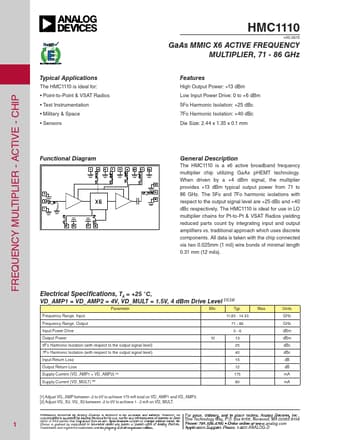

HMC1110 Datasheet Preview — Preview of HMC1110 PDF

Datasheet Details

Part number:

HMC1110

Manufacturer:

Analog Devices ↗

File Size:

411.72 KB

Description:

Gaas mmic x6 active frequency multiplier.
FREQUENCY MULTIPLIER - ACTIVE - CHIP Typical Applications The HMC1110 is ideal for: Point-to-Point & VSAT Radios Test Instrumenta.
