HMC1162 Datasheet, Vco, Analog Devices

HMC1162 Features

  • Vco Dual output fOUT = 9.25 GHz to 10.10 GHz fOUT/2 = 4.625 GHz to 5.050 GHz Power output (POUT): 11 dBm (typical) Single-sideband (SSB) phase noise:
  • 115 dBc/Hz at 100 kHz No exter

PDF File Details

Part number:

HMC1162

Manufacturer:

Analog Devices ↗

File Size:

242.43kb

Download:

📄 Datasheet

Description:

9.25ghz to 10.10ghz mmic vco. The HMC1162 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates the resonator, a

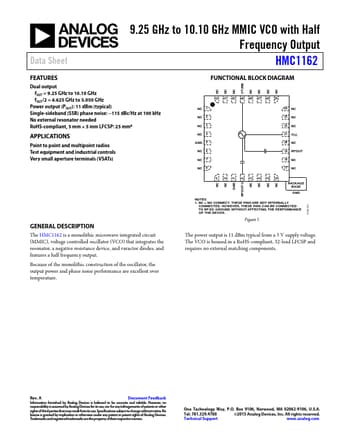

Datasheet Preview: HMC1162 📥 Download PDF (242.43kb)
Page 2 of HMC1162 Page 3 of HMC1162

HMC1162 Application

  • Applications Point to point and multipoint radios Test equipment and industrial controls Very small aperture terminals (VSATs) GENERAL DESCRIPTION T
