HMC1163 Datasheet, Vco, Analog Devices

HMC1163 Features

  • Vco Dual output frequency range fOUT = 9.65 GHz to 10.41 GHz fOUT/2 = 4.825 GHz to 5.205 GHz Output power (POUT): 11 dBm Single-sideband (SSB) phase noise:
  • 114 dBc/Hz at 100 kHz No

PDF File Details

Part number:

HMC1163

Manufacturer:

Analog Devices ↗

File Size:

301.65kb

Download:

📄 Datasheet

Description:

9.65 ghz to 10.41 ghz mmic vco. The HMC1163 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a n

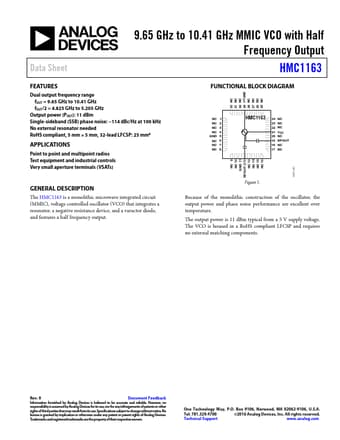

Datasheet Preview: HMC1163 📥 Download PDF (301.65kb)
Page 2 of HMC1163 Page 3 of HMC1163

HMC1163 Application

  • Applications Point to point and multipoint radios Test equipment and industrial controls Very small aperture terminals (VSATs) FUNCTIONAL BLOCK DIA
