HMC1160 Datasheet, Vco, Analog Devices

HMC1160 Features

  • Vco Dual output: fO = 8.45 GHz to 9.3 GHz fO/2 = 4.225 GHz to 4.65 GHz POUT: 12 dBm Phase noise:
  • 116 dBc/Hz at 100 kHz No external resonator needed RoHS compliant, 5 mm × 5 mm SMT

PDF File Details

Part number:

HMC1160

Manufacturer:

Analog Devices ↗

File Size:

234.30kb

Download:

📄 Datasheet

Description:

Mmic vco. The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode,

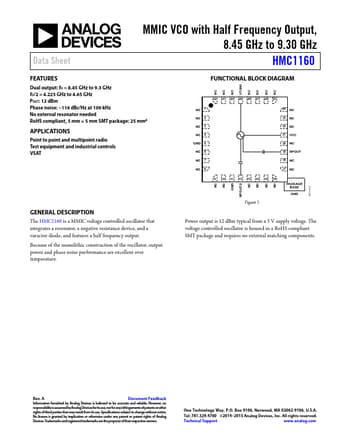

Datasheet Preview: HMC1160 📥 Download PDF (234.30kb)
Page 2 of HMC1160 Page 3 of HMC1160

HMC1160 Application

  • Applications Point to point and multipoint radio Test equipment and industrial controls VSAT GENERAL DESCRIPTION The HMC1160 is a MMIC voltage contr
