HMC400MS8 - HIGH IP3 GaAs MMIC MIXER

Product Overview

Analog Devices

Datasheet Details

Part number	HMC400MS8
Manufacturer	Analog Devices
File Size	672.83 KB
Description	HIGH IP3 GaAs MMIC MIXER
Datasheet	HMC400MS8 Datasheet

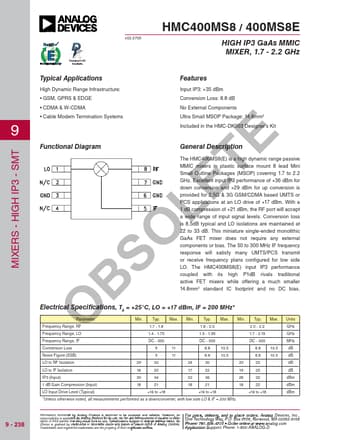

Additional preview pages of the HMC400MS8 datasheet.

Product details

Description

The HMC400MS8(E) is a high dynamic range passive MMIC mixers in plastic surface mount 8 lead Mini Small Outline Packages (MSOP) covering 1.7 to 2.2 GHz.

Features

High Dynamic Range Infrastructure: Input IP3: +35 dBm.
GSM, GPRS & EDGE Conversion Loss: 8.8 dB.
CDMA & W-CDMA No External Components.
Cable Modem Termination Systems Ultra Small MSOP Package: 14.8mm2 Included in the HMC-DK003 Designer’s Kit SOLETE Functional Diagram General.
