HMC402MS8

HIGH IP3 GaAs MMIC MIXER

HMC402MS8 Features

* High Dynamic Range Infrastructure: Input IP3: +31 dBm

* GSM, GPRS & EDGE High Side LO

* CDMA & W-CDMA Ultra Small MSOP8 Package: 14.8mm2

* Cable Modem Termination Systems No External Components Included in the HMC-DK002 Designer’s Kit SOLETE Functional Diagram Gene

HMC402MS8 General Description

The HMC402MS8 & HMC402MS8E are high dynamic range passive MMIC mixers in plastic surface mount 8 lead Mini Small Outline Packages (MSOP) covering 1.8 to 2.2 GHz. Excellent input IP3 performance of +31 dBm for down conversion and +27 dBm for up conversion is provided for 2.5G & 3G GSM/CDMA based UMTS.

HMC402MS8 Datasheet (657.25 KB)

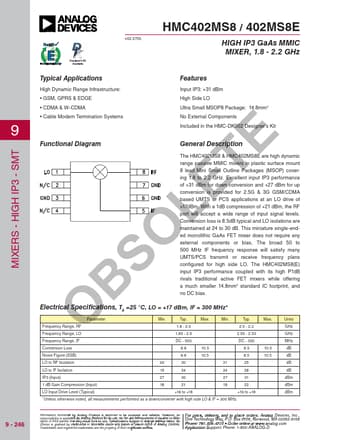

Preview of HMC402MS8 PDF
