HMC401QS16GE Ku-Band MMIC VCO

The HMC401QS16G & HMC401QS16GE are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC401QS16G & HMC401QS16GE integrate resonators, negative resistance devices, varactor diodes and divide-by-8 prescalers. The VCO’s phase noise performance is excellent over temperature, shock, and p.

HMC401QS16GE Features

* Low noise MMIC VCO w/Divide-by-8 Pout: -7 dBm for Ku-Band applications such as: Phase Noise: -105 dBc/Hz @100 KHz Typ.

* Point-to-Point Radios No External Resonator Needed

* Point-to-Multi-Point Radios / LMDS Single Supply: 5V @ 290 mA

* VSAT LETE Functional Diagram

HMC401QS16GE Datasheet (1.13 MB)

Preview of HMC401QS16GE PDF

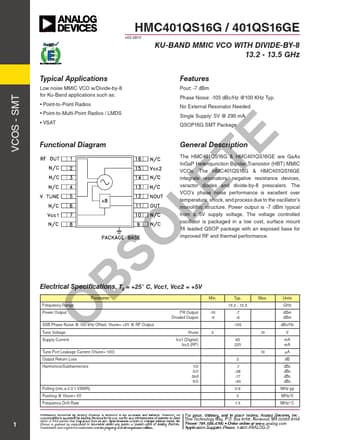

HMC401QS16GE Datasheet Preview Page 2 HMC401QS16GE Datasheet Preview Page 3

Datasheet Details

Part number:

HMC401QS16GE

Manufacturer:

Analog Devices ↗

File Size:

1.13 MB

Description:

Ku-band mmic vco.
