HMC421QS16

PCS/UMTS HIGH IP3 RFIC DOWNCONVERTER

Analog Devices

HMC421QS16 Features

* The HMC421QS16 / HMC421QS16E is ideal for: Input IP3: +19 dBm

* GSM, GPRS & EDGE Infrastructure Integrated IF & LO Amps: +10 dBm LO

* CDMA, WCDMA Infrastructure Conversion Gain: 9 dB

* PHS & PDC Infrastructure Noise Figure: 9 dB LETE Functional Diagram Single Positi

HMC421QS16 General Description

The HMC421QS16 & HMC421QS16E are high linearity down-converter receiver ICs suitable for PCS/UMTS infrastructure applications. The receiver IC is designed to support UMTS applications where a high third order intercept point (OIP3) is required. A passive mixer coupled with a high dynamic range IF am.

HMC421QS16 Datasheet (1.04 MB)

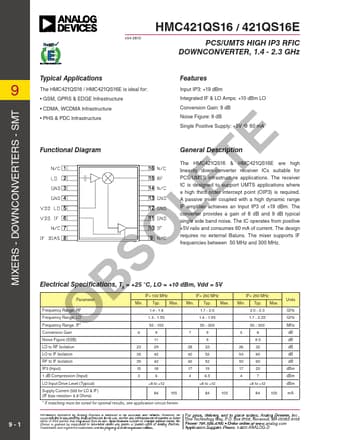

HMC421QS16 Datasheet Preview — Preview of HMC421QS16 PDF

Datasheet Details

Part number:

HMC421QS16

Manufacturer:

Analog Devices ↗

File Size:

1.04 MB

Description:

Pcs/umts high ip3 rfic downconverter.
HMC421QS16 / 421QS16E v04.0810 PCS/UMTS HIGH IP3 RFIC DOWNCONVERTER, 1.4 - 2.3 GHz MIXERS - DOWNCONVERTERS - SMT 9 9-1 Typical Applications Feat.
