HMC422MS8

GaAs MMIC MIXER

HMC422MS8 Features

* The HMC422MS8 / HMC422MS8E is ideal for: Integrated LO Amplifier w/ Pdiss

HMC422MS8 General Description

The HMC422MS8 & HMC422MS8E are double balanced mixer ICs with integrated LO amplifiers. This mixer can operate as an upconverter or downconverter between 1.2 GHz and 2.6 GHz. With the integrated LO amplifier, the mixer requires an LO drive level of only 0 dBm, and requires only 30mA from a single po.

HMC422MS8 Datasheet (919.40 KB)

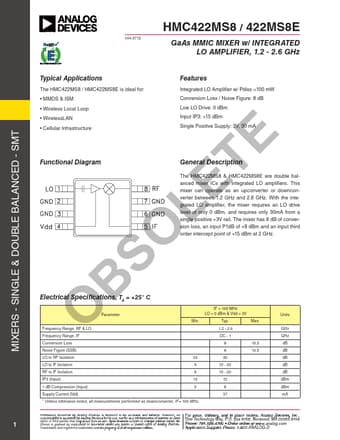

Preview of HMC422MS8 PDF

Datasheet Details

Part number:

HMC422MS8

Manufacturer:

Analog Devices ↗

File Size:

919.40 KB

Description:

Gaas mmic mixer.
HMC422MS8 / 422MS8E v04.0712 GaAs MMIC MIXER w/ INTEGRATED LO AMPLIFIER, 1.2 - 2.6 GHz Mixers - SINGLE & DOUBLE BALANCED - SMT Typical Application.
