HMC487LP5E Datasheet - Analog Devices

HMC487LP5E SURFACE MOUNT PHEMT MMIC

The HMC487LP5E is a high dynamic range GaAs PHEMT MMIC 2 Watt Power Amplifiers housed in leadless 5 x 5 mm surface mount packages. Operating from 9 to 12 GHz, the amplifier provides 20 dB of gain, +33 dBm of saturated power and 20% PAE from a +7V supply voltage. Output IP3 is +36 dBm typical. The RF.

HMC487LP5E-AnalogDevices.pdf

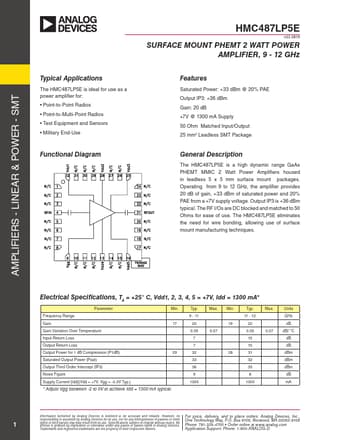

Preview of HMC487LP5E PDF
HMC487LP5E Datasheet Preview Page 2 HMC487LP5E Datasheet Preview Page 3

Datasheet Details

Part number:

HMC487LP5E

Manufacturer:

Analog Devices ↗

File Size:

934.26 KB

Description:

Surface mount phemt mmic.
