HMC510LP5E Datasheet, vco equivalent, Analog Devices

HMC510LP5E Features

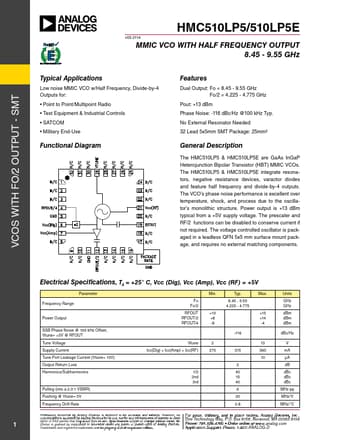

• Vco Dual Output: Fo = 8.45 - 9.55 GHz Fo/2 = 4.225 - 4.775 GHz Pout: +13 dBm Phase Noise: -116 dBc/Hz @100 kHz Typ. No External Resonator Needed 32 Lead 5x5mm SMT Package: 25mm² General D

PDF File Details

Part number:

HMC510LP5E

Manufacturer:

Analog Devices ↗

File Size:

370.32kb

Download:

📄 Datasheet

Description:

Mmic vco. The HMC510LP5 & HMC510LP5E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC510LP5 & HMC510LP5E integrate res

HMC510LP5E Application

• Applications Low noise MMIC VCO w/Half Frequency, Divide-by-4 Outputs for:
• Point to Point/Multipoint Radio
• Test Equipment & Indu
