HMC512LP5 Datasheet, Vco, Analog Devices

HMC512LP5 Features

  • Vco Triple Output: Fo = 9.6 - 10.8 GHz Fo/2 = 4.8 - 5.4 GHz Fo/4 = 2.4 - 2.7 GHz Pout: +9 dBm Phase Noise: -110 dBc/Hz @100 kHz Typ. No External Resonator Needed 32 Lead 5 x 5 mm SMT Packag

PDF File Details

Part number:

HMC512LP5

Manufacturer:

Analog Devices ↗

File Size:

375.65kb

Download:

📄 Datasheet

Description:

Mmic vco. The HMC512LP5 & HMC512LP5E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC512LP5 & HMC512LP5E integrate res

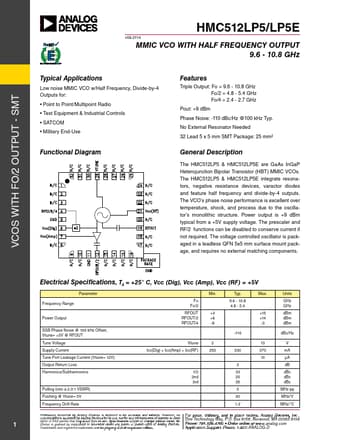

Datasheet Preview: HMC512LP5 📥 Download PDF (375.65kb)
Page 2 of HMC512LP5 Page 3 of HMC512LP5

HMC512LP5 Application

  • Applications Low noise MMIC VCO w/Half Frequency, Divide-by-4 Outputs for:
  • Point to Point/Multipoint Radio
  • Test Equipment & Indu
