HMC511LP5 Datasheet, Vco, Analog Devices

HMC511LP5 Features

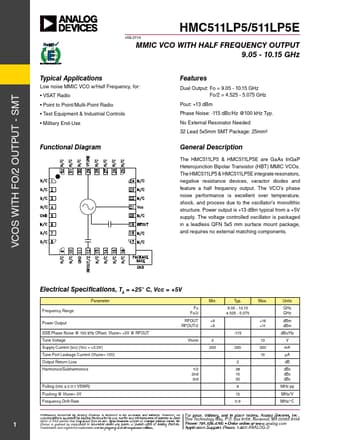

• Vco Dual Output: Fo = 9.05 - 10.15 GHz Fo/2 = 4.525 - 5.075 GHz Pout: +13 dBm Phase Noise: -115 dBc/Hz @100 kHz Typ. No External Resonator Needed 32 Lead 5x5mm SMT Package: 25mm² General De

PDF File Details

Part number:

HMC511LP5

Manufacturer:

Analog Devices ↗

File Size:

410.22kb

Download:

📄 Datasheet

Description:

Mmic vco. The HMC511LP5 & HMC511LP5E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC511LP5 & HMC511LP5E integrate res

HMC511LP5 Application

• Applications Low noise MMIC VCO w/Half Frequency, for:
• VSAT Radio
• Point to Point/Multi-Point Radio
• Test Equipment & In
