HMC522 Datasheet, Mixer, Hittite Microwave

HMC522 Features

  • Mixer Wide IF Bandwidth: DC - 3.5 GHz Image Rejection: 35 dB LO to RF Isolation: 45 dB High Input IP3: +24 dBm 3 MIXERS - CHIP
  • Digital Radio
  • VSAT Functional Diagram Ge

PDF File Details

Part number:

HMC522

Manufacturer:

Hittite Microwave

File Size:

330.76kb

Download:

📄 Datasheet

Description:

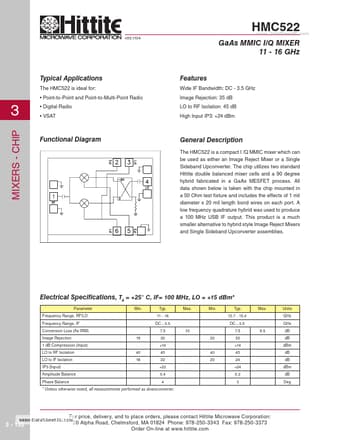

Gaas mmic i/q mixer. The HMC522 is a compact I /Q MMIC mixer which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The chip

Datasheet Preview: HMC522 📥 Download PDF (330.76kb)
Page 2 of HMC522 Page 3 of HMC522

HMC522 Application

  • Applications The HMC522 is ideal for:
  • Point-to-Point and Point-to-Multi-Point Radio Features Wide IF Bandwidth: DC - 3.5 GHz Image Reject
