HMC520LC4

GaAs MMIC I/Q MIXER

HMC520LC4 Features

* Wide IF Bandwidth: DC - 3.5 GHz Image Rejection: 40 dB LO to RF Isolation: 50 dB High Input IP3: +23 dBm 24 Lead 4x4mm SMT Package: 16mm² General Description The HMC520LC4 is a compact I/Q MMIC mixer in a leadless “Pb free” SMT package, which can be used as either an Image Reject Mixer or a Single S

HMC520LC4 General Description

The HMC520LC4 is a compact I/Q MMIC mixer in a leadless “Pb free” SMT package, which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The mixer utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MESFET process. A low fre.

HMC520LC4 Datasheet (372.50 KB)

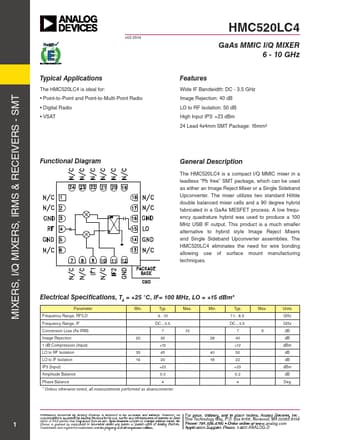

Preview of HMC520LC4 PDF

Datasheet Details

Part number:

HMC520LC4

Manufacturer:

Analog Devices ↗

File Size:

372.50 KB

Description:

Gaas mmic i/q mixer.
MIXERS, I/Q MIXERS, IRMS & RECEIVERS - SMT v03.0514 Typical Applications The HMC520LC4 is ideal for:

* Point-to-Point and Point-to-Multi-Poin.
